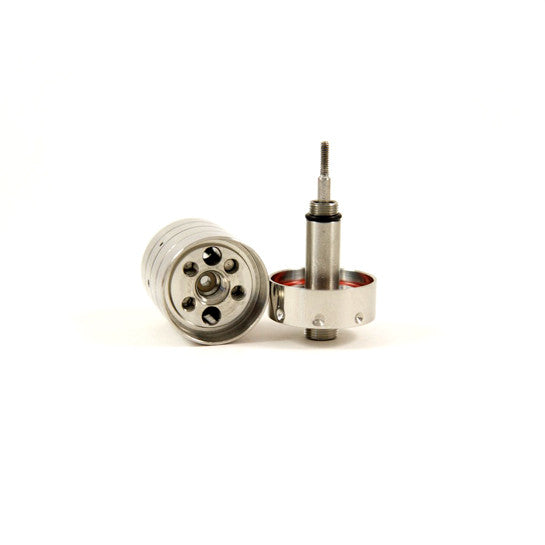

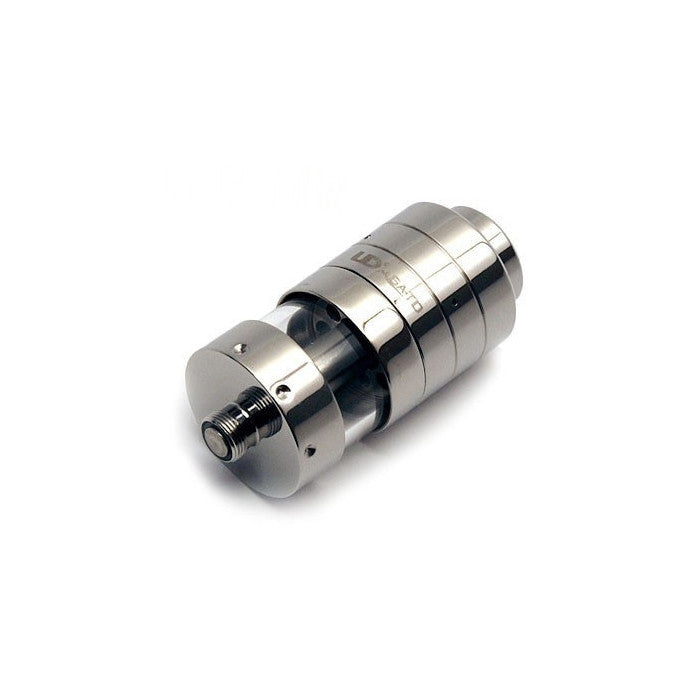

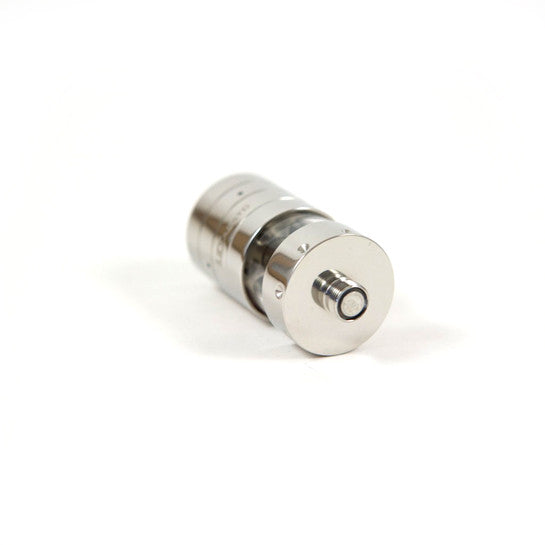

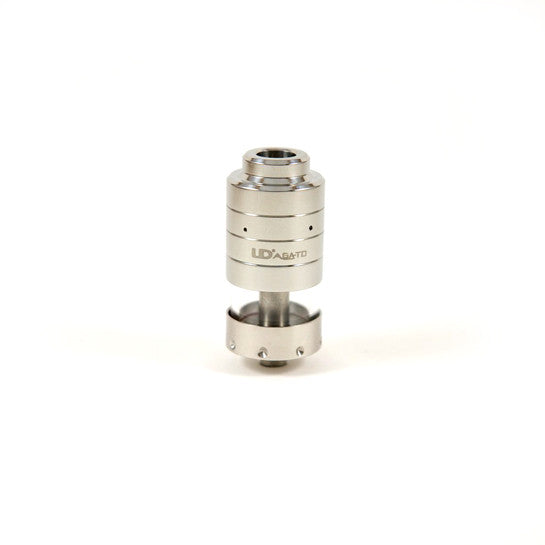

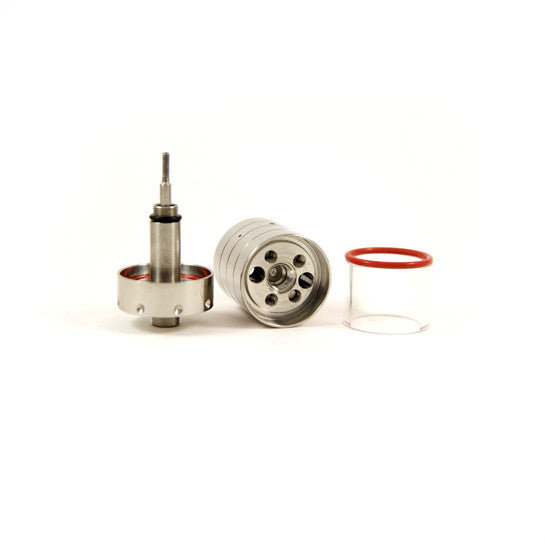

Youde AGA-TD - Rebuildable Atomizer
Advanced vapers, hold onto your seats! The Youde AGA-TD Dual-Coil, Dual-Mesh Rebuildable Atomizer is here, and it’s incredible! This highly customizable atomizer is loaded with various build options. You can set it up as a single or dual dripping atomizer, depending on your preference. The Youde AFA-TD can also be easily used as a hybrid tank.
Want More? This remarkable rebuildable atomizer is designed with two separate sets of air holes, allowing you to dictate the amount of airflow based on the way in which the top cap is sealed. Conveniently, there is no drilling necessary to control the airflow.
The Youde AGA-TD Dual Coil Atomizer comes complete with a Pyrex glass tank with a large 3ml liquid capacity. Additionally, it also includes extra screws, washers, o-rings, Nichrome resistance wire, and stainless steel mesh.
PLEASE MAKE SURE TO READ THE IMPORTANT SAFETY INFORMATION IN THE "HELPFUL TIPS" TAB BELOW.
Youde AGA-TD Specifications:
Wicking Hole Size: 3.5mm (0.14 inches)
Atomizer Width: 22mm (0.87 inches)
Atomizer Height: 45mm (1.77 inches)
Pyrex Tank Capacity: 3ml
Pyrex Tank Outside Diameter: 20mm (0.79 inches)
Pyrex Tank Inside Diameter: 16mm (0.63 inches)
Pyrex Tank Height: 15mm (0.60 inches)
Atomizer Material: Oxidized Aluminum
Posts: 2 x Negative, 1 x Positive
Post Type: Screw-less positive/negative
Wicking Ports: 2 Ports
Air Holes: 2 Air Holes in Top Cap
Battery Connector: Sealed
Drip Tip Compatibility: Fits most 510 drip tips

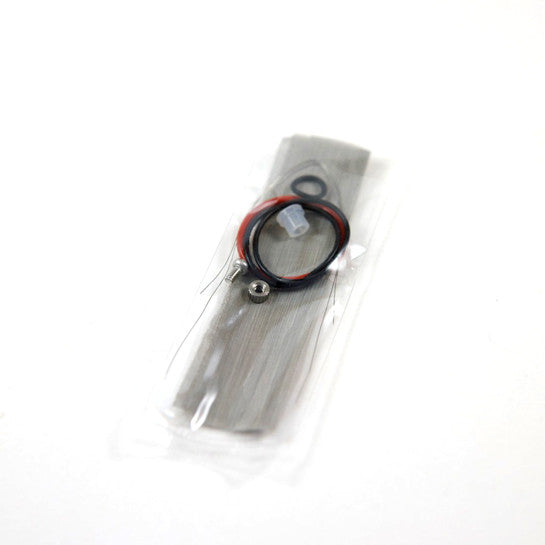

The Youde AGA-TD Includes:
4 x O-Rings
1 x Screw
1 x Washer
1 x Grommet Seal
1 x Pyrex Glass Tank (3ml)
Nichrome Resistance Wire
400 Stainless Steel Mesh
IMPORTANT SAFETY INFORMATION BELOW:
FOR EXPERTS ONLY. USE REBUILDABLE ATOMIZERS AT YOUR OWN RISK.
Rebuildable atomizers (RDAs, RBA, RTAs) and their use pose certain risks that you should familiarize yourself with. All rebuildable atomizers are intended for advanced/expert users only, and not meant for beginner or intermediate vapers. You should have a minimum of 6 months experience with rebuildable atomizers prior to purchasing one for yourself and attempting to use it without the supervision of an expert. You must have intimate knowledge with using multimeters; be well versed with Ohms Law and how it relates to wattage and voltage; be well trained in building atomizer coils and how to properly configure them; and have a solid understanding of electronics in general.
Prior to purchasing and using any rebuildable atomizer, you must make sure that you fully understand the following:
- All rebuildable atomizer coils must first be tested prudently with a proper meter prior to it being used, as untested atomizer coils can be extremely dangerous.
- Coils that have been improperly configured or are otherwise faulty can blow your electronic device, which can result in serious injury to you and/or your property.
- Atomizer coils that have been newly constructed must be tested on a meter, then first used on an advanced personal vaporizer (APV) that has all of the appropriate safety features, including short-circuit protection. Once the atomizer coil has been tested and used on such a device, you can then cautiously use the coil on a mechanical MOD.
- Faulty or otherwise improperly configured rebuildable atomizer coils can damage electronic devices, which can result in bodily injury or harm.
By purchasing and using this product, you hereby consent to wholly taking full responsibility and sole liability for the purchase and use of this item. You further agree to hold harmless and indemnify Vapor Authority, its managers, executives, successors, shareholders, owners, employees, directors, and all affiliates from any and all liability for the usage of this product. Vapor Authority, Inc. is in absolutely no way, shape, or form liable for the harm or hazard that may arise due to the use of this product.
