Genuine Aspire™ NX75-Z 75W TC mod

By Aspire

7 reviews
List Price: 49.99
Our Price: $32.99

Your sensitive information is of the utmost importance to us. Rest assured that when purchasing from Vapor Authority, all of your information is transmitted using Secure Sockets Layer (SSL), which encrypts your data. Your payment is conducted through our merchant bank’s secure servers, and your payment information is never stored within our internal servers at any time.
Don’t worry – you’re covered! You can always purchase with peace of mind from Vapor Authority. We offer you a full 60-day in-house warranty on all manufacturer defects, and a 15-day period for returns and exchanges on unopened items as well. Full details on our Warranty page
We pride ourselves on carrying only 100% authentic products. To ensure this, we solely buy directly from the manufacturer or a manufacturer authorized distributor. Vapor Authority does not carry any clones or knockoffs whatsoever—guaranteed!
At Vapor Authority, we are dedicated to providing you the best shopping experience possible. To help further this effort, we offer same-day shipping on all orders placed by 12:00 PM (Pacific Standard Time). Full details on our Shipping page.

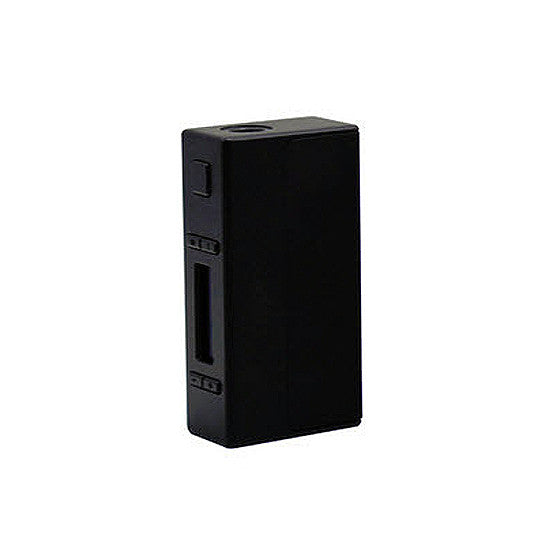

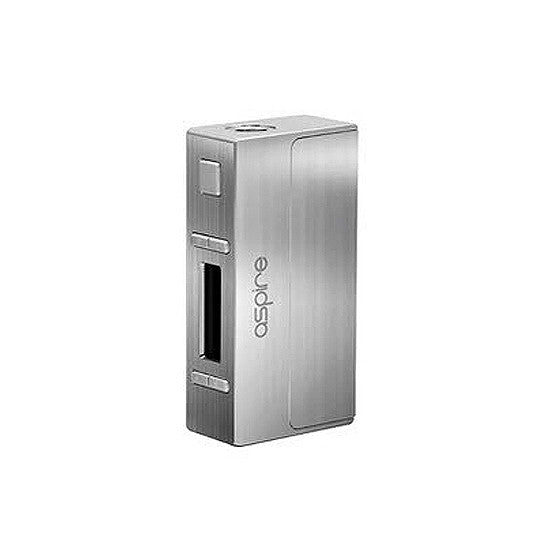

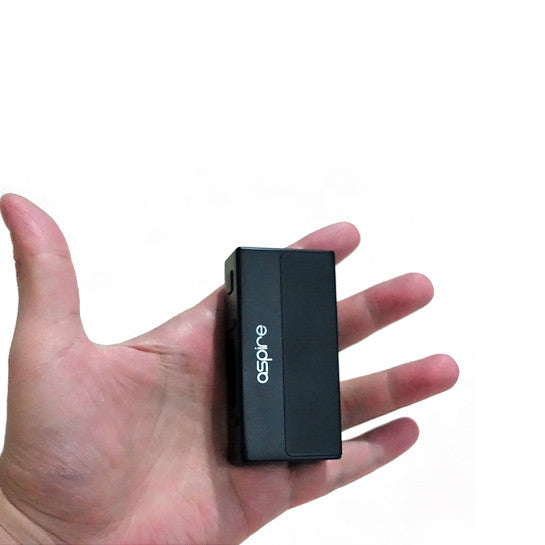

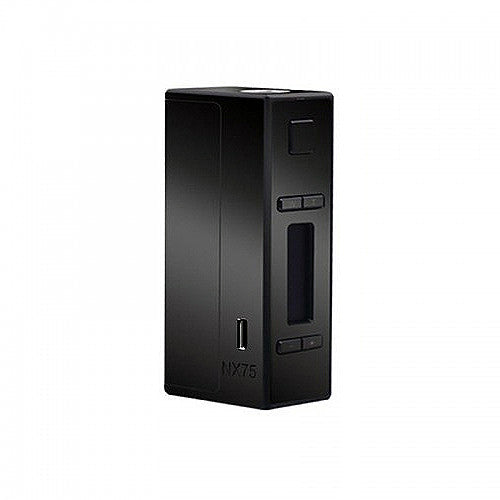

Genuine Aspire™ NX75-Z TC mod

It goes without saying that Aspire is one of the most reputable and trusted brands within the vaping industry. With an impressive array of award-winning and highly-innovative devices within their vast collection, it is no wonder why Aspire’s vaping hardware is so well-regarded by vapers from around the world. Among their many state-of-the-art devices, Aspire’s assortment of MODs is truly second-to-none. As such, it is with immense enthusiasm to introduce their latest masterpiece—the Aspire NX75-Z Box MOD.

The Aspire NX75-Z MOD is fabricated with exceptionally high-quality materials, with meticulous attention paid to the finest intricacies. The body and frame of this spectacular device is constructed with die-casted zinc alloy. Aspire selected this material for the NX75-Z due to its exceptional strength, hardness, high dimensional accuracy, stability, and outstanding corrosion resistance. The result is a durable and long-lasting devices that is remarkably light in weight. The spring-loaded, self-adjusting contact pin is made with 304-grade stainless steel for wonderful electrical conductivity and a secure connection between the NX75-Z and the atomizer being used.

The Aspire NX75-Z Box MOD is a variable wattage and variable voltage device. By simply clicking on the “W” button located on its face, you can effortlessly switch to power mode. Clicking the button again will allow you to alternate between variable wattage, variable voltage, and bypass modes with great ease. You can set the power output to as low as 1W and as high as 75W in 0.1 increments, by simply utilizing the operation buttons. This large spectrum of available power enables you to use your NX75-Z MOD with virtually any atomizer coil you wish.

By clicking on the “T” button located directly next to the “W” button, you can switch the device to temperature mode. With its imbedded temperature control, sensing, and limiting capability, this phenomenal device will allow you to regulate the temperature of the atomizer coil itself. You can rotate between stainless steel, titanium, and nickel atomizer coil modes by simply clicking the “T” button again. It is important to note that temperature mode can only be used with these atomizer coil types, and will not work with any other type of coil.

Between the Aspire NX75-Z MOD’s mode and operation buttons rests a top-of-the-line OLED screen, which digitally displays a range of important data. By activating the screen, you can clearly and vividly monitor the remaining battery life, the resistance of the atomizer coil, the wattage, the temperature setting, the mode that the device is in, the duration of your puff, and any error messages that may arise while in use. This amount of data at your fingertips makes operating your NX75-Z extremely easy and convenient. As an added bonus, Aspire designed the MOD with logo customizability, allowing you to display your unique logo on the screen.

In an effort to stay ahead of the curve with respect to government regulations, Aspire intelligently engineered the NX75-Z Box MOD with a child-locking mechanism. By pressing and holding the “W” button and “-” buttons simultaneously, you can effortlessly ensure that the device cannot be operated. This greatly helps reduce the chance of accidental firing if it ends up in the hands of a child.

Due to the fact that all rechargeable batteries contain a certain lifecycle, after which it cannot hold a charge whatsoever, Aspire designed the NX75-Z MOD to be powered by a single external 18650 battery (sold separately). As a result, when the battery ultimately dies, it can be replaced inexpensively rather than being forced to replace the device as a whole. Moreover, the ability to easily remove and replace the battery affords you the ability to carry charged spares with you in case the one in use dies while you are on the go. To make battery removal swift and effortless, Aspire designed the NX75-Z’s battery door cover with magnetic lock, thereby allowing you to easily take it off and pop it back on with no tools of any sort needed.

Adding to the incredibly versatile and groundbreaking nature of the Aspire NX75-Z Box MOD is its proprietary Customizable Firing Button Profiles (CFBP) feature. This cutting-edge technology enables you to fine-tune the heat ramp-up in order to manufacture an accurate and customized power curve platform. This is a spectacular capability, particularly for hobbyists and expert vapers who enjoy alternating between various tanks and atomizer coils.

In an effort to help ensure that your NX75-Z MOD is always up-to-date, Aspire engineered it with firmware upgradability. By connecting the device to your computer, you can download the latest updates and technologies as they are released. This is a sensational feature, as it eliminates the need to purchase an entirely new device each time new upgrades are made available, as is the case for the majority of other MODs on the market.

In a plethora of fashions, the Aspire NX75-Z Box MOD is one of the most remarkable devices ever released to the vaping community. With the ability to effortlessly rotate between various modes, this NX75-Z is the perfect choice for vapers of all types.

Note: Battery Sold Separately

Copyright Protected Content


Aspire-NX75-Z-User-Manual  Download the Aspire NX75-Z User Manual




Vape MOD Batteries

To Purchase Batteries for The Aspire NX75-Z, Click HERE.




External (Sold Separately)




Adjustable Wattage






Aspire NX75-Z Box MOD Specifications:

Manufactured by: Aspire

Wattage Range: 1W – 75W

Temperature Range: 200°F – 600°F (100°C – 315°C)

Battery Compatibility: Single 18650 (Sold Separately)

Resistance VW/Bypass Mode): 0.1 Ohms – 3.5 Ohms

Resistance (Temperature Mode): 0.05 Ohms – 1.5 Ohms

Height: 2.95 Inches (75mm)

Width: 1.37 (35mm)

Depth: 0.87 Inches (22mm)


Aspire NX75-Z Box MOD Specifications:

1 x Aspire NX75-Z Box MOD

1 x USB Charging Cable

1 x User Manual

Aspire NX75-Z Box MOD Features:

Variable Wattage

Variable Voltage

Bypass Mode

Temperature Control, Sensing, and Limiting

Can Accommodate All Atomizer Coil Materials

Firmware Upgradability

Powered by External 18650 Battery (Sold Separately)

Customizable Firing Button Profiles

High-Resolution OLED Screen

Battery Level Indicator

Ohms Meter

Child-Lock Mechanism

Customizable Logo

Magnetic Battery Door Cover

Spring-Loaded, Self-Adjusting Contact Pin

Made with Die-Casted Zinc Alloy

How to Operate the Aspire NX75-Z Box MOD:

To Change Between Power Modes: Click the “W” button repeatedly until desired mode is found.

To Change Between Temperature Modes: Click the “W” button repeatedly until desired mode is found.

To Increase/Decrease Power/Temperature: Click the “+” and “-” buttons.

To Lock/Unlock MOD: Click the fire button 5 times rapidly.

To Enter/Exit Stealth Mode: Click the fire times 3 times rapidly.

To Lock/Unlock Buttons: Click the “W” and “+” buttons simultaneously.

To Enable/Disable Child-Lock: Click the “W” and “-” buttons simultaneously.

To Change the Logo: Click the “T” and “-” buttons simultaneously.

To Manage TCR Settings: Press the “T” and “+” buttons simultaneously.

To Turn System Off: First lock the device, then click the fire button 3 times rapidly.

To Select Language: Press and hold the fire button while installing the battery.
